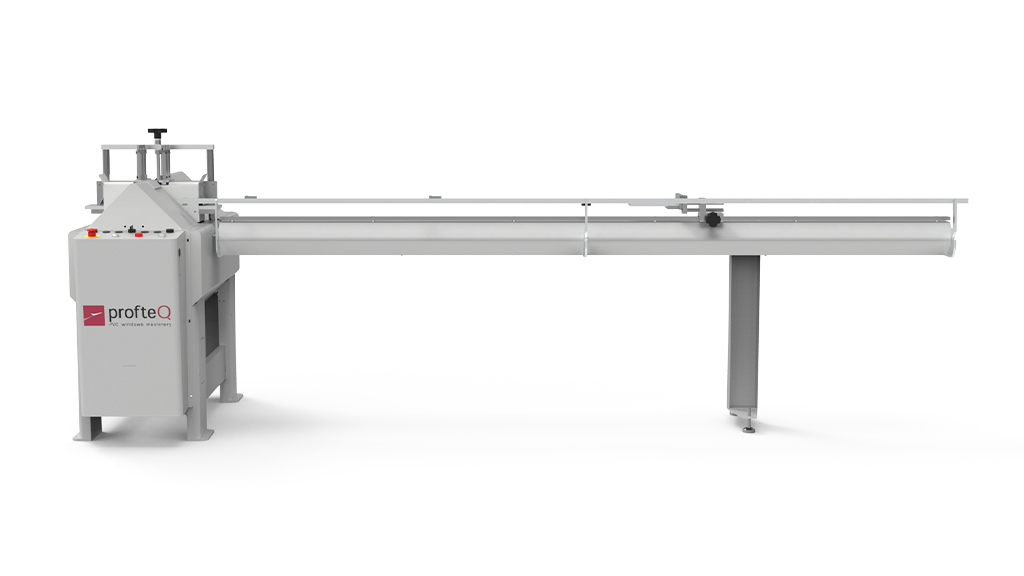

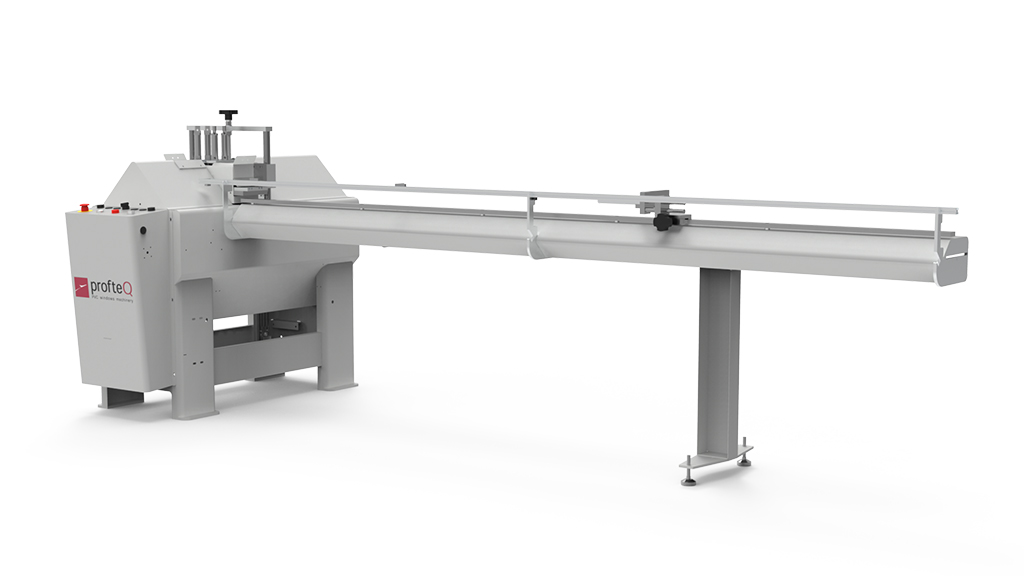

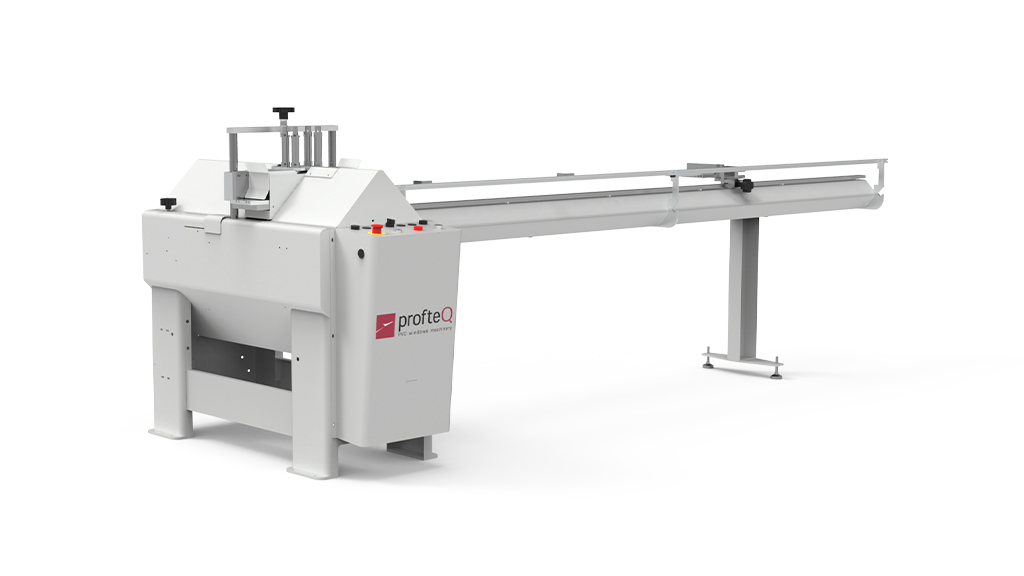

TR65N
Semi-automatic sawing machine for glazing beads
Sawing machine for simultaneous cutting of 2 glazing beads
- Simultaneous cutting at 45° of No. 2 glazing beads.
- Two-handed command.
- Vertical adjustment of the cutting table to carry out milling of the coupling foot.
- The machine does not require jigs. The glazing beads are housed in a standard plate and rest against the adjustable vertical stops that simulate the glass.
- Ability to cut multiple types of glazing bead.
- Ability to connect to QUOTA GB PVC driven roller table.
- Ability to load on right and unload on left or vice versa.
- Two blades diameter 250 mm for glazing bead cutting.
- Two blades diameter 175 mm for milling of the coupling foot.
- Glass simulator.
- Offset template for minimum undersized cutting.
- No. 1 loading side support with length stop fitted with metric rule and two removable gauges, one of 1650 mm and the other of 3000 mm
- No. 1 loading side support 3000 mm long
- No. 1 lubrication kit for aluminium cutting
- Motorized electronic roller table
- Electronic gauge to detect measurements
