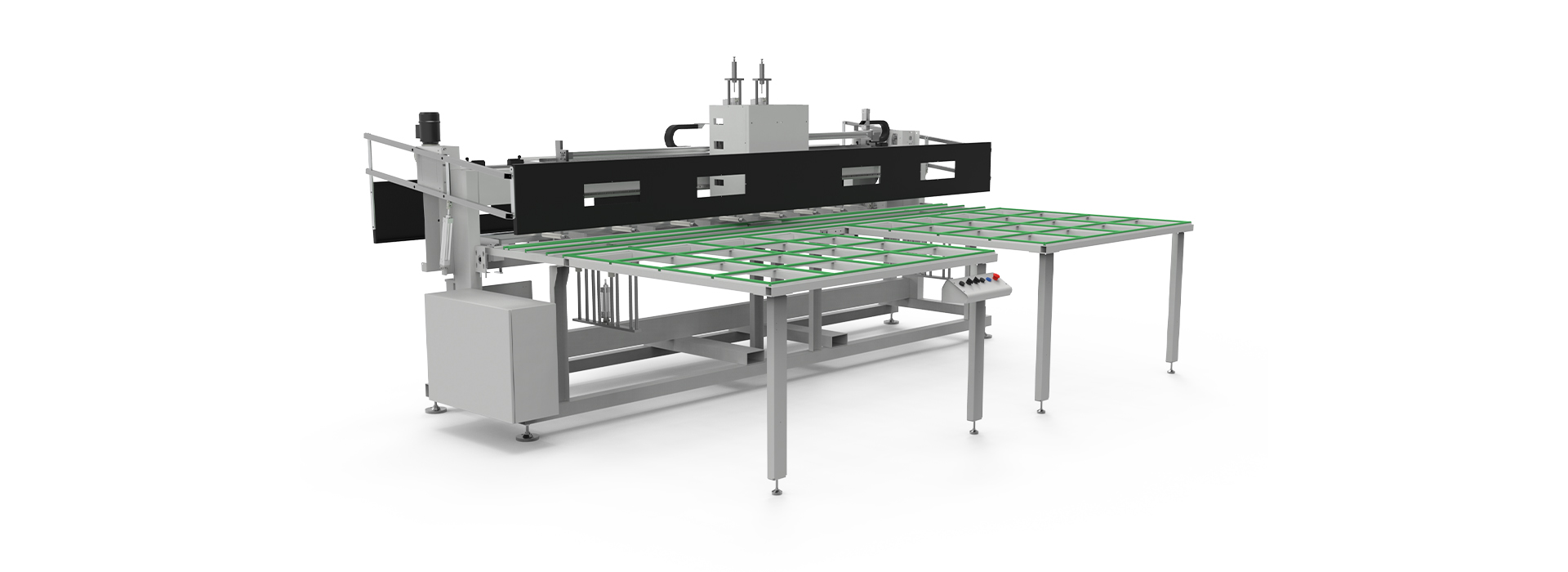

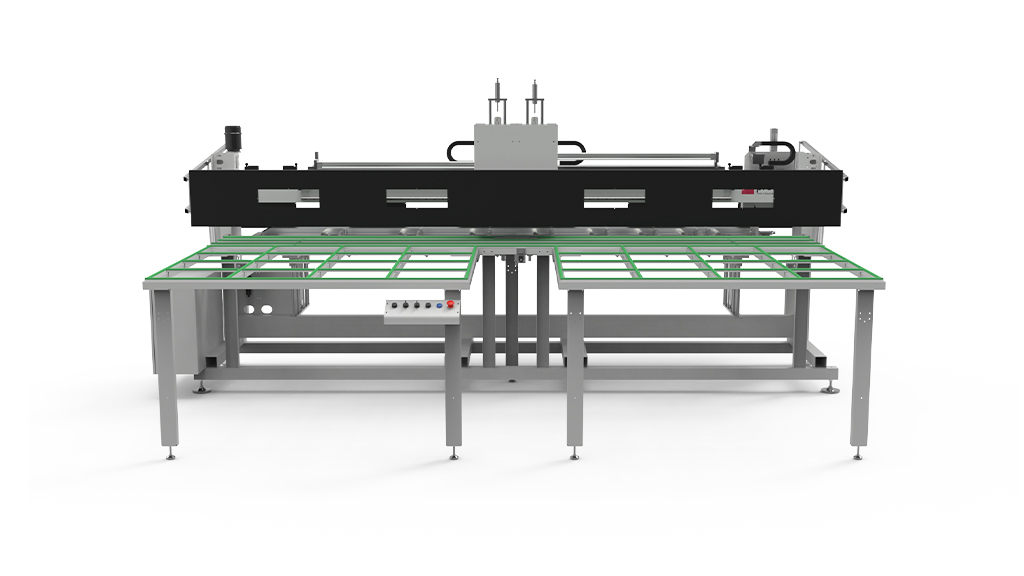

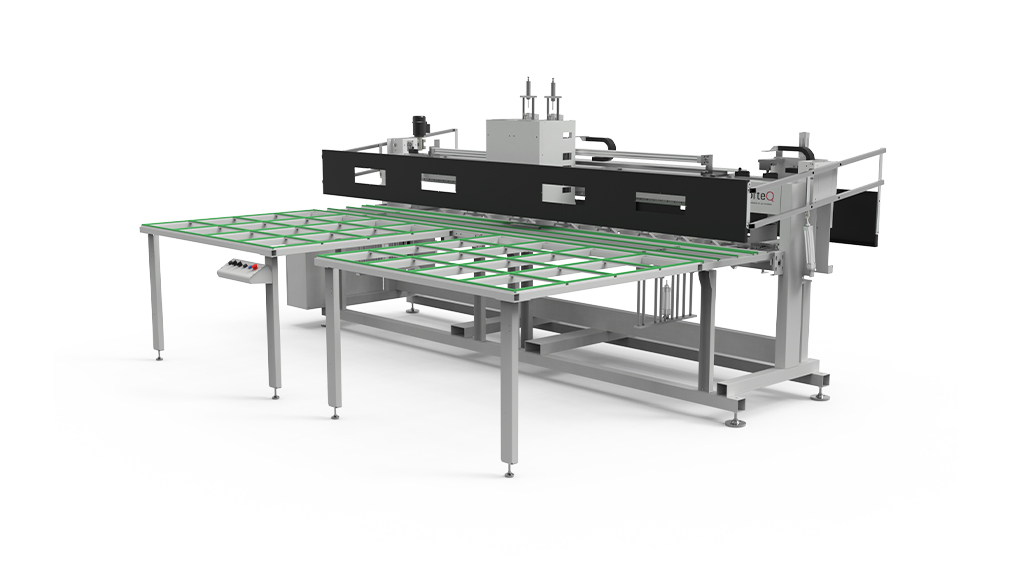

Welded frame machining table. Can be used to carry out boring and edge trimming.

  • Maximum internal machinable frame size 2750 mm
  • Minimum internal machinable size 450 mm
  • Capacity: 150 Kg
  • PVC and iron boring
  • Automatic self-centring head positioning
  • Automatic locking of the frame
  • Boring reference inside the frame, on the glazing bead hollow
  • Hydraulic braking of boring unit feed
  • Automatic boring depth stopping and return
  • Characteristic portal structure allowing precise hinge boring operations to be carried out even in the case of windows with two or more sashes.
  • Right and left side stops to machine frames with mechanically mounted aluminium thresholds
  • Two front frame support surfaces
  • Two multi-bit boring heads
  • Frame tab edge trimming unit
