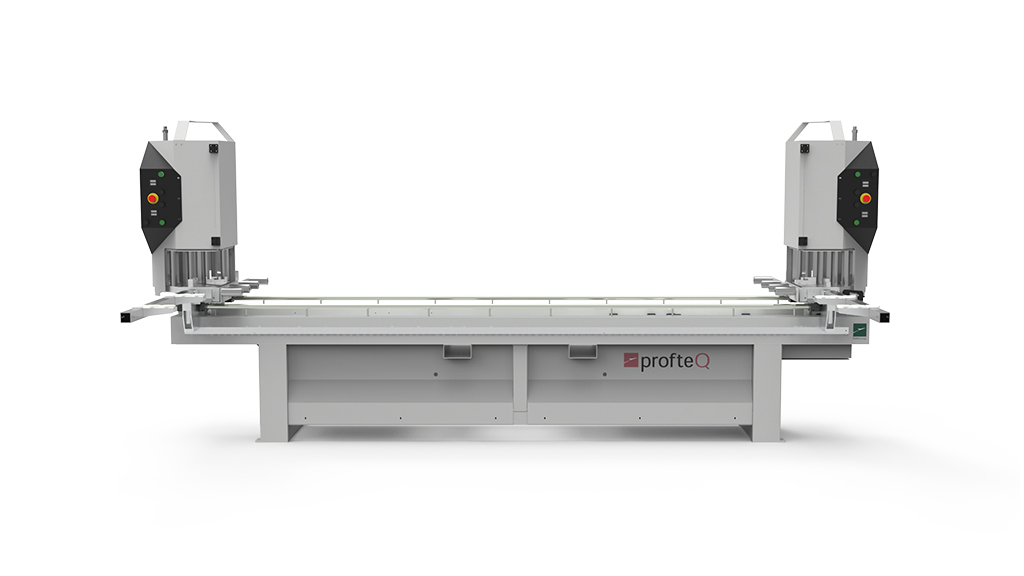

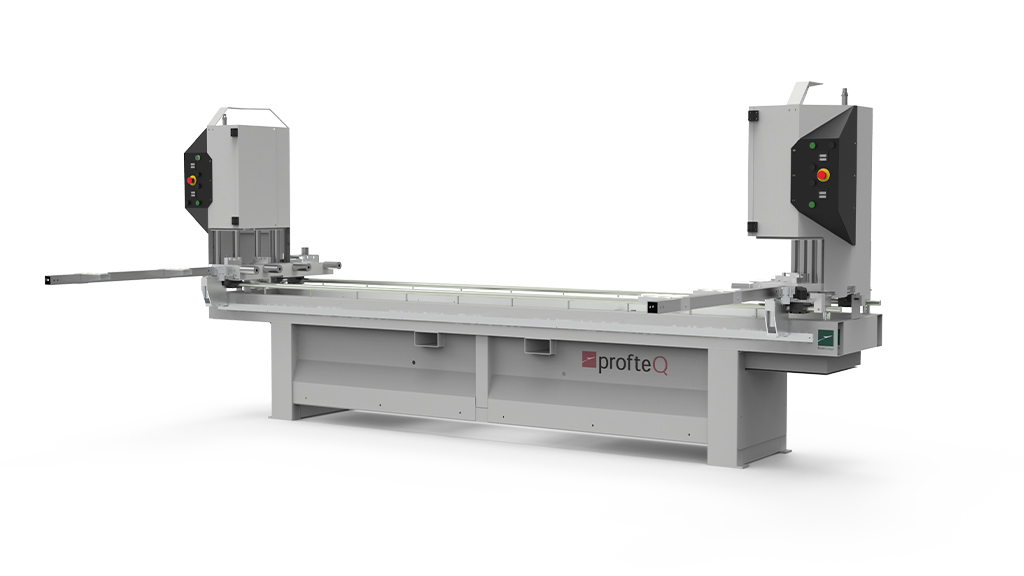

LINK 9045
Automatic two-head welding machine
Automatic two-head welding machine for 90° and variable angles with 45° or 90° angle joint finishing
- Fully automatic, PLC controlled work cycle
- Welding of 90° and variable corners (from 45° to 180° on the right mobile head)
- Welding of corner at 90° wood-like
- Adjustment of the melting and welding time adaptable to existing market profiles
- Heating system by serpentine, in order to warm at the same way all the heating plate.
- Moving head moves on double chromed and thoughened bar with sphere bearings, allowing a fluis sliding and the accurancy of the positioning
- Quick change system of the teflon
- No. 2 profile support arms to help the operator during the welding of two contemporary corner
- No. 8 bead limiters, heated to decrease the thermal gap
- No. 8 stainless steel limiters to change the bead thickness to 2 mm
- No. 8 stainless steel limiters to change the bead thickness to 0.2 mm
- Head opening and support rollers for frames evacuation
- Kit seal-press
- Mobile head/fixed head reversal
