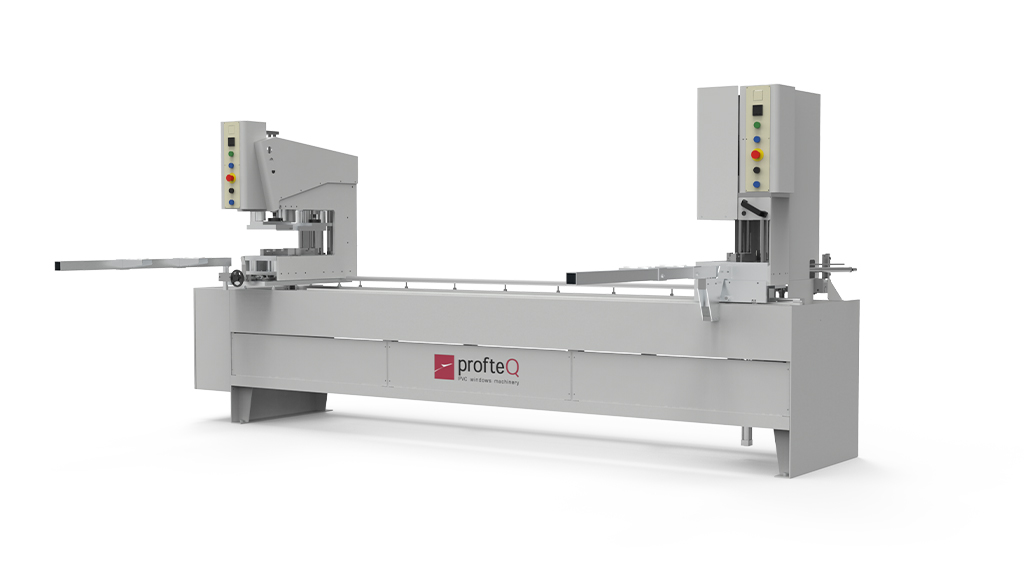

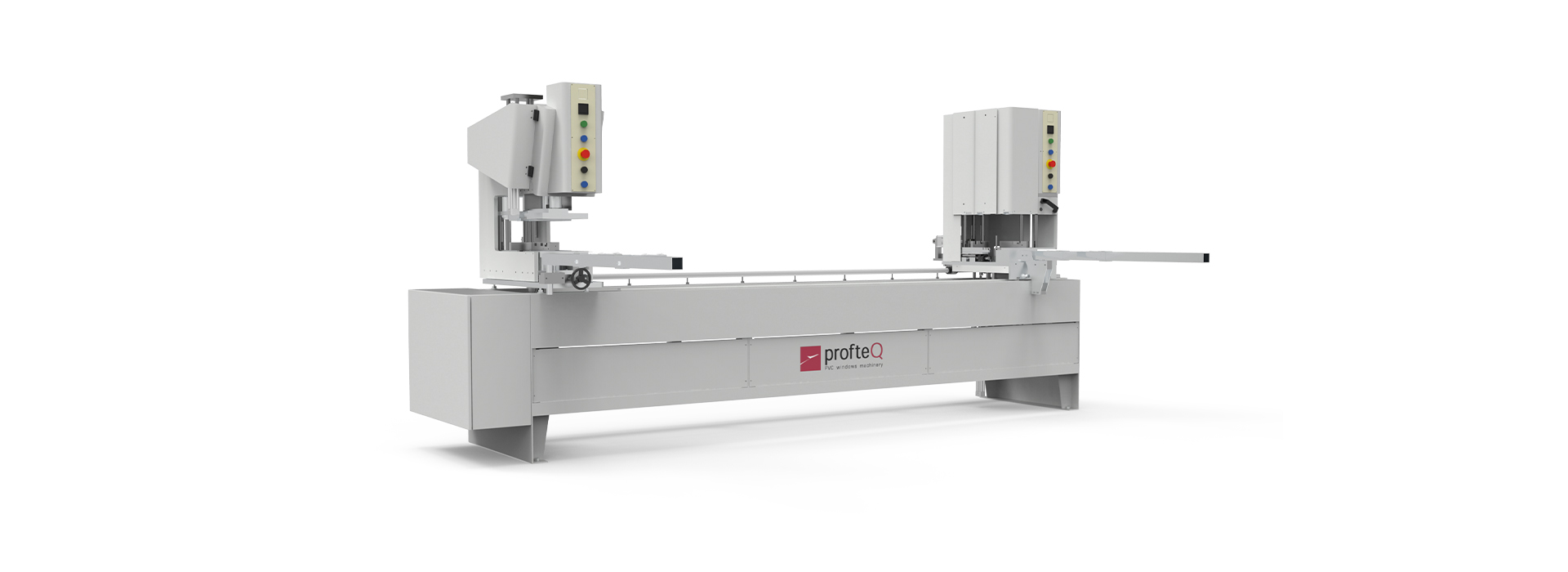

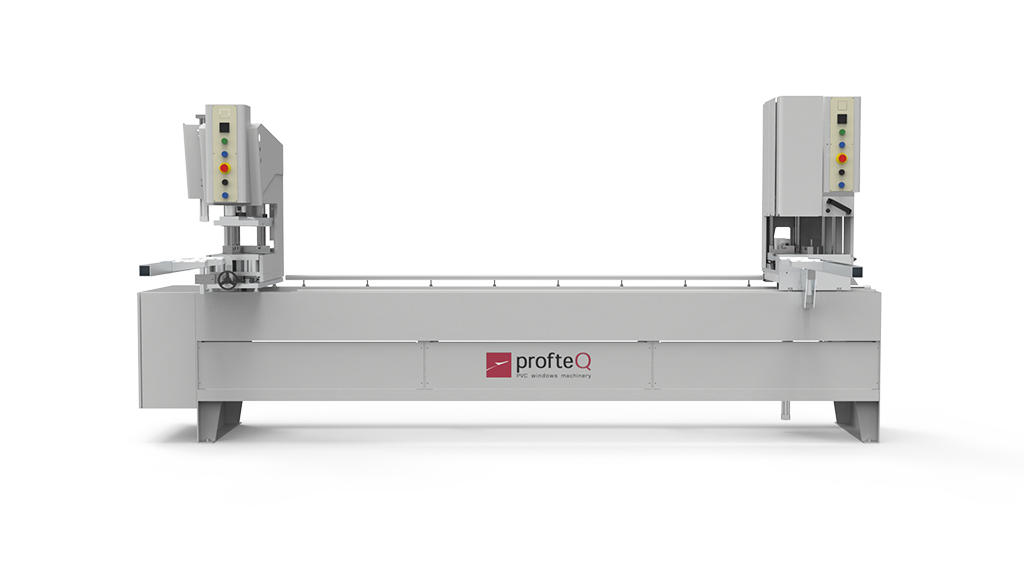

LINK 2V
Automatic two-head welding machine
Automatic two-head welding machine for 90°, variable, 180° angles and wedge rails
- Fully automatic working cycle driven by PLC
- Dedicated mobile head for welding of 90° angles
- Fixed head for welding of wedge rails or crosses
- Adjustable restrictors
- Positioner of wide dimensions to obtain the perfect positioning on all workable profiles
- Moving head moves on double chromed and thoughened bar with sphere bearings, allowing a fluis sliding and the accurancy of the positioning
- Heating system by serpentine, in order to warm at the same way all the heating plate
- Adjustment of the melting and welding time adaptable to existing market profiles
- No. 2 profile support arms to help the operator during the welding of two contemporary corner
- No. 8 heated stainless steel bead limiters (to weld both the white profile and the coated one) adjustable from 0.2 to 2.0 mm
- Counterblocks set
- Teflon sheet
